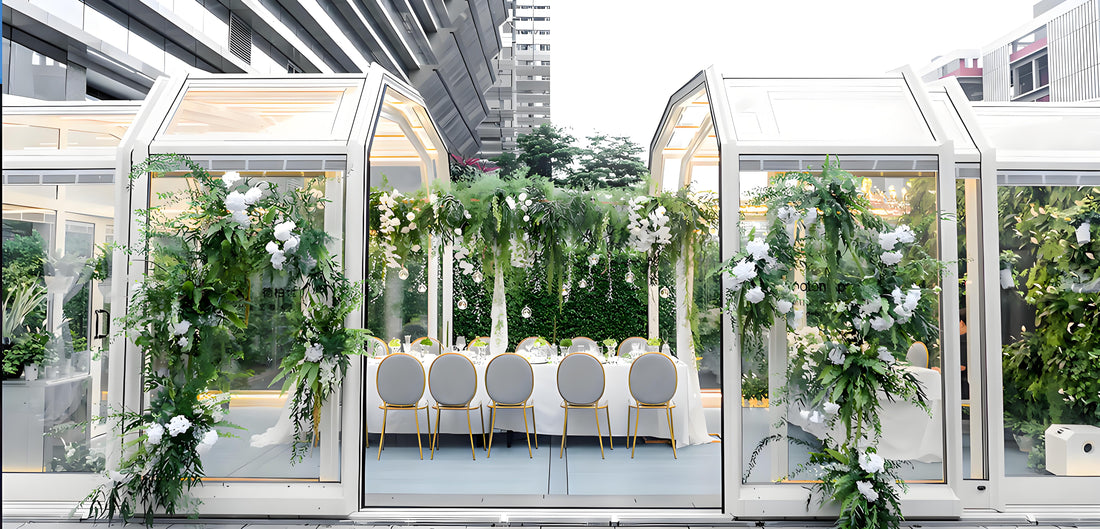

Retractable Sunrooms in the Canadian Climate – Navigating Extreme Snow Loads

In the architectural landscape of Canada, the "Sunroom" represents a pursuit of light and connection to nature within a climate that is often unforgiving. For many Canadian homeowners and commercial developers, the Retractable Sunroom—a structure capable of opening to the summer breeze and sealing against the winter chill—is the ultimate luxury. However, from an engineering perspective, a retractable glass structure in Canada is a high-stakes challenge.

Unlike the static sunrooms found in Australia or the Mediterranean, a Canadian retractable sunroom must operate as a high-performance machine. It must withstand the crushing weight of "The Great White North"—the Extreme Snow Load. Designing these structures requires a sophisticated synthesis of mechanical precision, material science, and a deep adherence to the National Building Code of Canada (NBCC).

1. The Canadian Context: Why Standard Designs Fail

Most retractable sunroom systems globally are designed for wind and rain. In Canada, these are secondary concerns. The primary "predator" of the retractable structure is the Ground Snow Load ($S_s$).

In cities like Ottawa, Montreal, or St. John’s, ground snow loads can reach or exceed $3.0 \, kN/m^2$ to $5.0 \, kN/m^2$. When you translate this to a retractable roof—which is often composed of aluminum frames and polycarbonate or glass panels—the engineering requirements become exponential. A standard "European-style" retractable pergola will often buckle under a single Canadian February storm if not modified specifically for this jurisdiction.

2. The Physics of Snow on Retractable Surfaces

A retractable sunroom is essentially a series of interlocking telescopic segments. The structural integrity depends not just on the strength of the beams, but on the stability of the tracks and the rigidity of the joints.

The Weight of Accumulation

Snow in Canada is rarely "light." As the winter progresses, snow undergoes "metamorphism," where individual flakes compress into a dense, icy mass. The pressure formula for a sunroom roof must account for this density:

For a retractable sunroom, the Slope Factor ($C_s$) is a double-edged sword. While a steeper pitch (e.g., $> 25^\circ$) helps snow slide off, the mechanical tracks must be strong enough to resist the lateral "shoving" force of the snow trying to move downward.

The Problem of "Point Loading"

In a retractable system, the weight is not always distributed evenly. If snow accumulates on one retracted segment more than another, it creates a Differential Load. This can cause the tracks to misalign or "rack," meaning the sunroom may become stuck or, worse, experience a localized structural failure.

3. Structural Framework: Aluminum vs. Steel

In the Australian market, lightweight aluminum is preferred for its corrosion resistance. In Canada, we use High-Tempered Structural Aluminum Alloys (such as 6061-T6 or 6005-T5), but with significantly thicker profiles and internal reinforcements.

I. Internal Steel Reinforcement

For spans exceeding 4 meters in high-load zones (like Quebec or the Maritimes), aluminum alone is often insufficient. Canadian-spec retractable sunrooms frequently utilize Hybrid Engineering:

• Aluminum Exterior: Provides the aesthetic finish and corrosion resistance against road salt and humidity.

• Sleeved Steel Cores: Galvanized steel inserts are slid inside the aluminum rafters to provide the "moment capacity" required to prevent mid-span deflection under heavy snow.



II. Deflection Limits

Engineering for snow isn't just about preventing collapse; it’s about preventing Deflection ($L/180$ or $L/240$). If a roof beam flexes too much under a snow load, the glass or polycarbonate panels may "pop" out of their gaskets, or the telescopic seals may fail, leading to massive water leaks during the spring thaw.

4. The Glazing Challenge: Polycarbonate vs. Laminated Glass

The "transparent" part of the sunroom is its most vulnerable feature. In Canada, the choice of glazing is dictated by the Snow Load ($S_s$) and Impact Resistance.

The Engineering Verdict: For retractable roofs in high-snow areas, 16mm to 25mm Multi-wall Polycarbonate is often the gold standard. It can withstand the impact of falling ice chunks from an adjacent house roof and is light enough that the motor system can still retract the roof efficiently.

5. Drift Loads and the "Rain-on-Snow" Surcharge

In many Canadian residential designs, a retractable sunroom is attached to the back of a two-story home. This creates a Snow Trap.

The $C_a$ (Accumulation) Factor

Wind blowing over the roof of the main house will drop massive amounts of snow onto the sunroom roof below. This "Drift Load" can be 3 to 4 times the weight of the uniform snow load.

• Engineering Requirement: The sunroom rafters closest to the house wall must be spaced more tightly (e.g., 300mm centers instead of 600mm) to handle the concentrated weight of the drift.

The Rain-on-Snow ($S_r$) Factor

In late March, Canada often experiences heavy rain on top of a 50cm snowpack. The snow acts as a sponge, soaking up the water. The Associated Rain Load ($S_r$) adds an extra $0.1$ to $0.4 \, kN/m^2$ of pressure. A sunroom designed without this margin is a liability.

6. Thermal Breaks and Ice Management

A retractable sunroom that is "heated" creates a unique micro-climate. If the aluminum frames are not Thermally Broken, the heat from the inside will conduct through the metal, melting the bottom layer of snow on the roof.

1. Ice Damming on Tracks: The melted snow runs into the retractable tracks and refreezes. This can "lock" the sunroom in place and cause the motor to burn out if it attempts to open against the ice.

2. Condensation: In a Canadian winter ($-20^\circ C$), a non-thermally broken frame will "sweat" profusely inside, leading to mold and damage to the flooring.

The Solution: Engineering "Smart Tracks" with integrated heating cables (Heat Trace) can ensure that the moving parts remain ice-free, allowing the sunroom to be operated even in the depths of January.

7. Foundation and Anchoring: Resisting Frost Heave

In Australia, a sunroom can often sit on a simple concrete slab. In Canada, the foundation must fight the earth itself. Frost Heave occurs when moisture in the soil freezes and expands, exerting upward pressure that can lift entire structures.

• Helical Piles or Sonotubes: The sunroom’s support posts must be anchored below the local "Frost Line" (which can be 1.2m to 2m deep depending on the province).

• Movement Allowance: Because the sunroom is attached to the main house (which sits on a deep foundation), the sunroom foundation must be equally stable. Any "heaving" of the sunroom will cause the retractable segments to jam or the seals to tear away from the house wall.

8. Safety and the "Shedding" Hazard

One of the most overlooked aspects of sunroom engineering in Canada is where the snow goes when it slides off.

• Dynamic Load of Sliding Snow: When a sunroom roof is tilted, a "warm" interior can cause the entire snowpack to slide off at once. This creates a massive dynamic impact on whatever is below—usually a deck, a glass railing, or a pedestrian walkway.

• Snow Guards for Sunrooms: Engineers must often design custom snow-clamping systems that allow the roof to remain retractable while preventing "avalanches" from endangering people below.

9. Maintenance and "Load Shedding" Strategies

Even the best-engineered retractable sunroom requires a "Management Plan" in the Canadian climate.

• Automated Sensors: High-end systems now include Snow Sensors. When the sensor detects a certain weight or temperature profile, it can trigger a "Vibration Mode" to shake off loose snow or activate internal heating elements to prevent accumulation.

• The "Retraction Rule": In extreme blizzard warnings, many engineers recommend retracting the sunroom completely (if the segments stack under a protected "shield" or "overhang"). This removes the surface area entirely, meaning the snow falls directly to the ground rather than loading the structure.



10. Conclusion: The Gold Standard for Canadian Living

Building a retractable sunroom in Canada is not merely a matter of "assembly"; it is an act of specialized structural engineering. To ignore the snow load is to invite structural failure, insurance complications, and safety hazards.

A Canadian-spec retractable sunroom must be:

1. Over-engineered in its rafter profiles (Hybrid Aluminum-Steel).

2. Thermally Intelligent to prevent ice damming and track freeze.

3. Deeply Anchored to resist the relentless cycle of the frost.

When these criteria are met, the result is a breathtaking architectural feat—a space that defies the Canadian winter, offering a sanctuary of light even when the world outside is buried under a meter of snow. In the end, the strength of the sunroom is not measured by its beauty in the summer, but by its resilience in the winter.

Engineering Checklist for Canadian Retractable Sunrooms:

• Local $S_s$ Check: Does the design meet the 50-year probability ground snow load?

• Drift Analysis: Is the sunroom placed under a "step" in the house roof?

• Glazing Strength: Is the polycarbonate/glass rated for the calculated $kN/m^2$?

• Track Heating: Are there provisions to prevent ice from jamming the mechanical movement?

• Foundation Depth: Are the footings below the provincial frost line?

• Egress Safety: Is there a "safe zone" for sliding snow to land?
